自定义Starter:myQuartz-spring-boot-starter

模仿学习Spring Boot starter写一个关于Quartz的自动配置的依赖。

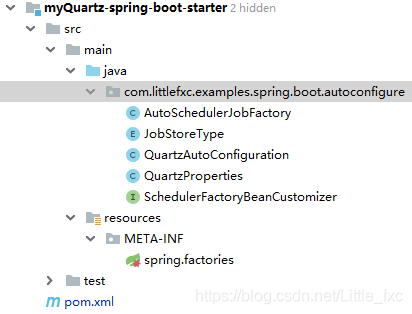

1. 自定义Starter的模块结构

2. Maven 依赖配置

自定义starter命名方式：

• 官方 spring-boot-starter-模块名
• 非官方（如我们自己编写的） 模块名-spring-boot-starter

spring-boot-configuration-processor是2.x必须引入的包。




     4.0.0


     com.littlefxc.examples


     myQuartz-spring-boot-starter


     1.0-snapshot


     jar



      org.springframework.boot


      spring-boot-starter-parent


      1.5.18.RELEASE





      2.3.0






       org.springframework.boot


       spring-boot-starter




       org.springframework.boot


       spring-boot-configuration-processor


       true





       org.quartz-scheduler


       quartz


       ${quartz.version}




         c3p0


         com.mchange




         HikariCP-java6


         com.zaxxer






       org.springframework


       spring-context-support




       org.springframework


       spring-tx




       org.springframework.boot


       spring-boot-starter-jdbc





3. 创建自动配置类QuartzAutoConfiguration

构造函数隐式注入

在4.3之前,如果你构造函数中要依赖另外一个bean，你必须显示依赖@Autowired, 例如:

@Servicepublic class FooService {
       private final FooRepository repository;    @Autowired    public FooService(FooRepository repository) {
           this.repository = repository    }}

相当常见的用例但是如果你忘记构造函数上的@Autowired注释，容器将抛出一个寻找默认构造函数的异常，除非你在bean定义设置中明确指出autowire模式’constructor’。

因此，从4.3开始，您不再需要在这样的单构造函数场景中指定显式注入注释。对于那些根本不带任何容器注释的类来说，这是特别优雅的，FooService会从beanFactory中查找FooRepository。

同样的，@Configuration类在4.3之前不支持构造函数注入。

为什么要使用ObjectProvider?

上文讲过构造函数隐式注入，但其有个缺点那就是强依赖。

Spring Framework 4.3引入了ObjectProvider，它是现有ObjectFactory接口的扩展，具有方便的签名，例如getIfAvailable和getIfUnique，只有在它实际存在时才检索bean（可选支持）或者如果可以确定单个候选者（特别是：主要候选者）在多个匹配的bean的情况下）。它的Spring核心源码见org.springframework.beans.factory.support.DefaultListableBeanFactory#resolveDependency()

** 用到的几个和Starter相关的注解:

• @ConditionalOnClass，当classpath下发现该类的情况下进行自动配置。
• @ConditionalOnMissingBean，当Spring Context中不存在该Bean时。
• @EnableConfigurationProperties(QuartzProperties.class)，使@ConfigurationProperties注解生效。
• @ConfigurationProperties，主要用来把properties配置文件转化为bean。
• @AutoConfigureAfter，自动注入该类在什么类加载之后。

自定义Quartz的调度器工厂Bean的自动配置类

@Configuration@ConditionalOnClass({
   Scheduler.class, SchedulerFactoryBean.class, PlatformTransactionManager.class})@EnableConfigurationProperties(QuartzProperties.class)@AutoConfigureAfter({
   DataSourceAutoConfiguration.class, HibernateJpaAutoConfiguration.class})public class QuartzAutoConfiguration {
       private final static Logger log = LoggerFactory.getLogger(QuartzAutoConfiguration.class);    private final List

     customizers;    private final QuartzProperties properties;    private final JobDetail[] jobDetails;    private final Map

      calendars;    private final Trigger[] triggers;    private final ApplicationContext applicationContext;    private final DataSource dataSource;    private final PlatformTransactionManager transactionManager;    public QuartzAutoConfiguration(QuartzProperties properties,                                   ObjectProvider


       > customizers,                                   ObjectProvider

         jobDetails,                                   ObjectProvider







4. resources/META-INF/spring.factories

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\com.littlefxc.examples.spring.boot.autoconfigure.QuartzAutoConfiguration

5. 其它

QuartzProperties

@ConfigurationProperties("spring.quartz")public class QuartzProperties {
       /**     * Quartz job store type.     */    private JobStoreType jobStoreType = JobStoreType.MEMORY;    /**     * Additional Quartz Scheduler properties.     */    private final Map

     properties = new HashMap<>();    public JobStoreType getJobStoreType() {
           return this.jobStoreType;    }    public void setJobStoreType(JobStoreType jobStoreType) {
           this.jobStoreType = jobStoreType;    }    public Map

      getProperties() {
           return this.properties;    }}



JobStoreType

public enum JobStoreType {
       /**     * Store jobs in memory.     */    MEMORY,    /**     * Store jobs in the database.     */    JDBC}

AutoSchedulerJobFactory

/** * 模仿了：{@link org.springframework.boot.autoconfigure.quartz.AutowireCapableBeanJobFactory} * * @author fengxuechao * @date 12/19/2018 * @see 注入Spring上下文(applicationContext) */public class AutoSchedulerJobFactory extends SpringBeanJobFactory {
       private AutowireCapableBeanFactory beanFactory;    AutoSchedulerJobFactory(AutowireCapableBeanFactory factory) {
           beanFactory = factory;    }    @Override    protected Object createJobInstance(final TriggerFiredBundle bundle) throws Exception {
           final Object job = super.createJobInstance(bundle);        beanFactory.autowireBean(job);        this.beanFactory.initializeBean(job, null);        return job;    }}

SchedulerFactoryBeanCustomizer

/** * 回调接口，可以由希望在完全初始化之前自定义Quartz SchedulerFactoryBean的bean实现，特别是调整其配置。 * @author fengxuechao */@FunctionalInterfacepublic interface SchedulerFactoryBeanCustomizer {
       /**     * 自定义{@link SchedulerFactoryBean}.     * @param schedulerFactoryBean the scheduler to customize     */    void customize(SchedulerFactoryBean schedulerFactoryBean);}

6. 测试

6.1 项目结构

新建项目,结构如下图所示：

6.2 Maven 依赖




     4.0.0


     com.littlefxc.examples


     test-autoconfigure


     1.0-snapshot



      org.springframework.boot


      spring-boot-starter-parent



      1.5.18.RELEASE





      2.3.0





       org.springframework.boot


       spring-boot-starter-web




       com.littlefxc.examples


       myQuartz-spring-boot-starter


       1.0-snapshot




       org.quartz-scheduler


       quartz-jobs


       ${quartz.version}




       org.springframework.boot


       spring-boot-starter-test


       test




       org.projectlombok


       lombok




       mysql


       mysql-connector-java




       com.alibaba


       druid-spring-boot-starter


       1.1.10





6.3 application.properties

logging.level.root=warnlogging.level.com.littlefxc.examples=debug# DataSource Configspring.datasource.url=jdbc:mysql://localhost:3306/learn-quartz?useSSL=falsespring.datasource.username=rootspring.datasource.password=123456spring.datasource.driver-class-name=com.mysql.jdbc.Driverspring.datasource.type=com.alibaba.druid.pool.DruidDataSourcespring.datasource.druid.filters=slf4j,wallspring.datasource.druid.initial-size=1spring.datasource.druid.min-idle=1spring.datasource.druid.max-active=8spring.datasource.druid.max-wait=60000spring.datasource.druid.time-between-eviction-runs-millis=60000spring.datasource.druid.min-evictable-idle-time-millis=300000spring.datasource.druid.test-while-idle=truespring.datasource.druid.test-on-borrow=falsespring.datasource.druid.test-on-return=falsespring.datasource.druid.pool-prepared-statements=truespring.datasource.druid.max-pool-prepared-statement-per-connection-size=20# Quartz Configspring.quartz.job-store-type=jdbcspring.quartz.properties.org.quartz.scheduler.instanceName=schedulerFactoryBeanspring.quartz.properties.org.quartz.scheduler.instanceId=AUTOspring.quartz.properties.org.quartz.scheduler.instanceIdGenerator.class=com.littlefxc.examples.CustomQuartzInstanceIdGeneratorspring.quartz.properties.org.quartz.threadPool.threadCount=20spring.quartz.properties.org.quartz.jobStore.class=org.quartz.impl.jdbcjobstore.JobStoreTXspring.quartz.properties.org.quartz.jobStore.driverDelegateClass=org.quartz.impl.jdbcjobstore.StdJDBCDelegatespring.quartz.properties.org.quartz.jobStore.useProperties=truespring.quartz.properties.org.quartz.jobStore.misfireThreshold=60000spring.quartz.properties.org.quartz.jobStore.tablePrefix=qrtz_spring.quartz.properties.org.quartz.jobStore.isClustered=truespring.quartz.properties.org.quartz.plugin.shutdownHook.class=org.quartz.plugins.management.ShutdownHookPluginspring.quartz.properties.org.quartz.plugin.shutdownHook.cleanShutdown=TRUE

6.4 代码

核心代码

@Slf4j@SpringBootApplicationpublic class TestAutoConfigure {
       public static void main(String[] args) {
           SpringApplication.run(TestAutoConfigure.class, args);    }    @Bean    public SchedulerFactoryBeanCustomizer dataSourceCustomizer() {
           return (schedulerFactoryBean) -> {
               schedulerFactoryBean.setOverwriteExistingJobs(false);            schedulerFactoryBean.setWaitForJobsToCompleteOnShutdown(true);            schedulerFactoryBean.setStartupDelay(10);        };    }    /**     * JobDetailFactoryBean     *     * @return     */    @Bean    public JobDetailFactoryBean jobDetailFactoryBean() {
           JobDetailFactoryBean bean = new JobDetailFactoryBean();        bean.setName("job-1");        bean.setGroup("job-group-1");        bean.setJobClass(MyJob.class);        JobDataMap jobDataMap = new JobDataMap();        jobDataMap.put("hello", "world");        bean.setJobDataMap(jobDataMap);        bean.setDurability(true);        return bean;    }    /**     * CronTriggerFactoryBean     *     * @param jobDetail     * @return     */    @Bean    public CronTriggerFactoryBean cronTrigger(JobDetail jobDetail) {
           CronTriggerFactoryBean bean = new CronTriggerFactoryBean();        bean.setName("cron-1");        bean.setGroup("cron-group-1");        bean.setCronExpression("0/5 * * * * ?");        bean.setJobDetail(jobDetail);        return bean;    }    /**     * Job     */    @Component    public static class MyJob extends QuartzJobBean {
           @Override        protected void executeInternal(JobExecutionContext jobExecutionContext) throws JobExecutionException {
               JobDetail jobDetail = jobExecutionContext.getJobDetail();            String jobName = jobDetail.getKey().getName();            String jobGroup = jobDetail.getKey().getGroup();            String jobDataMapHello = (String) jobDetail.getJobDataMap().get("hello");            log.info("job.name = {}, job.group = {}, job.dataMap.hello = {}", jobName, jobGroup, jobDataMapHello);        }    }}

CustomQuartzInstanceIdGenerator

public class CustomQuartzInstanceIdGenerator implements InstanceIdGenerator {
       @Override    public String generateInstanceId() throws SchedulerException {
           try {
               return UUID.randomUUID().toString().replaceAll("-", "");        } catch (Exception ex) {
               throw new SchedulerException("Couldn't generate UUID!", ex);        }    }}
